网关

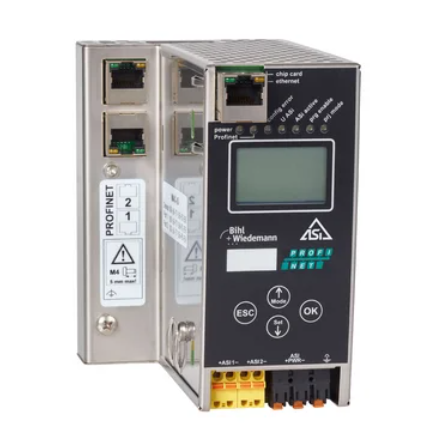

使用 Bihl+Wiedemann 的 ASi 网关，您可以将通过 ASi 模块远程读取的数字和模拟数据传输到主机控制器，并通过相应的总线系统将输出信号从主机控制器设置到执行器。我们的网关根据 ASi
使用 Bihl+Wiedemann 的 ASi 网关，您可以将通过 ASi 模块远程读取的数字和模拟数据传输到主机控制器，并通过相应的总线系统将输出信号从主机控制器设置到执行器。
我们的网关根据 ASi-3 进行通信。ASi-5 标准，因此确保了数据的最佳交换。它们的安装和调试简单快捷。用户受益于各种标准实施的诊断功能，例如重复地址检测、接地故障和 EMC 监控以及可选的 PLC 功能。
一个网关中的双主控是一种特别经济高效的方法。这使得两个 ASi 电路可以由一个网关控制。“集成去耦，ASi 电流”版本也只需要为两个 ASi 电路提供一个电源。
Figure | Fieldbus interface | ASi-5/ASi-3 | Number of ASi networks, number of ASi Master | Integrated decoupling, ASi current measurement in the gateway | Inputs Safety, SIL 3, Cat. 4 | Outputs Safety, SIL 3, cat. 4 | Safety communication | Article No. |
|---|---|---|---|---|---|---|---|---|
PROFINET | ASi-3 compatible | 2 ASi networks, 2 ASi-3 Masters | yes, max. 8 A/ASi network | - | - | - | BWU4855 | |
PROFINET | ASi-5 + ASi-3 compatible | 1 ASi network, 1 ASi-5/ASi-3 Master | yes, max. 8 A/ASi network | - | - | - | BWU4818 | |
EtherCAT, OPC UA | ASi-5 + ASi-3 compatible | 1 ASi network, 1 ASi-5/ASi-3 Master | yes, max. 8 A/ASi network | - | - | - | BWU4790 | |
BACnet/IP, OPC UA | ASi-3 compatible | 2 ASi networks, 2 ASi-3 Masters | yes, max. 8 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | Safe Link | BWU4780 | |
BACnet/IP, OPC UA | ASi-3 compatible | 2 ASi networks, 2 ASi-3 Masters | yes, max. 8 A/ASi network | - | - | - | BWU4778 | |
EtherNet/IP + ModbusTCP, OPC UA | ASi-5 + ASi-3 compatible | 2 ASi networks, 2 ASi-5/ASi-3 Masters | yes, max. 8 A/ASi network | - | - | - | BWU4258 | |
PROFINET, OPC UA | ASi-5 + ASi-3 compatible | 2 ASi networks, 2 ASi-5/ASi-3 Masters | yes, max. 8 A/ASi network | - | - | - | BWU4257 | |
EtherNet/IP + ModbusTCP, OPC UA | ASi-5 + ASi-3 compatible | 1 ASi network, 1 ASi-5/ASi-3 Master | yes, max. 8 A/ASi network | - | - | - | BWU4019 | |
PROFINET, OPC UA | ASi-5 + ASi-3 compatible | 1 ASi network, 1 ASi-5/ASi-3 Master | yes, max. 4 A/ASi network | no local safe input | no local safe output | PROFIsafe (F-CPU) + Safe Link | BWU4018 | |
POWERLINK, OPC UA | ASi-5 + ASi-3 compatible | 1 ASi network, 1 ASi-5/ASi-3 Master | yes, max. 4 A/ASi network | - | - | - | BWU4016 | |
BACnet/IP, OPC UA | ASi-3 compatible | 2 ASi networks, 2 ASi-3 Masters | no, max. 8 A/ASi network, redundant supply | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | Safe Link | BWU4=001 | |
PROFINET, OPC UA | ASi-5 + ASi-3 compatible | 2 ASi networks, 2 ASi-5/ASi-3 Masters | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | Safe Link | BWU4000 | |
PROFINET, OPC UA | ASi-5 + ASi-3 compatible | 1 ASi network, 1 ASi-5/ASi-3 Master | yes, max. 4 A/ASi network | no local safe input | no local safe output | Safe Link | BWU3998 | |
EtherCAT, OPC UA | ASi-5 + ASi-3 compatible | 1 ASi network, 1 ASi-5/ASi-3 Master | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | Safe Link | BWU3991 | |
PROFINET, OPC UA | ASi-5 + ASi-3 compatible | 1 ASi network, 1 ASi-5/ASi-3 Master | yes, max. 4 A/ASi network | no local safe input | no local safe output | PROFIsafe (F-CPU) + Safe Link | BWU3974 | |
PROFINET, OPC UA | ASi-5 + ASi-3 compatible | 2 ASi networks, 2 ASi-5/ASi-3 Masters | yes, max. 4 A/ASi network | no local safe input | no local safe output | PROFIsafe (F-CPU) + Safe Link | BWU3973 | |
PROFINET | ASi-5 + ASi-3 compatible | 1 ASi network, 1 ASi-5/ASi-3 Master | yes, max. 4 A/ASi network | - | - | - | BWU3972 | |
EtherNet/IP + ModbusTCP, OPC UA | ASi-5 + ASi-3 compatible | 2 ASi networks, 2 ASi-5/ASi-3 Masters | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | Safe Link | BWU3958 | |
EtherNet/IP + ModbusTCP, OPC UA | ASi-5 + ASi-3 compatible | 1 ASi network, 1 ASi-5/ASi-3 Master | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | Safe Link | BWU3957 | |
PROFINET, OPC UA | ASi-5 + ASi-3 compatible | 1 ASi network, 1 ASi-5/ASi-3 Master | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | Safe Link | BWU3955 | |
PROFINET, OPC UA | ASi-5 + ASi-3 compatible | 1 ASi network, 1 ASi-5/ASi-3 Master | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | PROFIsafe (F-CPU) + Safe Link | BWU3954 | |
PROFINET, OPC UA | ASi-5 + ASi-3 compatible | 2 ASi networks, 2 ASi-5/ASi-3 Masters | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | PROFIsafe (F-CPU) + Safe Link | BWU3953 | |
PROFINET, OPC UA | ASi-5 + ASi-3 compatible | 2 ASi networks, 2 ASi-5/ASi-3 Masters | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | Safe Link | BWU3952 | |
EtherNet/IP + ModbusTCP, OPC UA | ASi-5 + ASi-3 compatible | 1 ASi network, 1 ASi-5/ASi-3 Master | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | Safe Link | BWU3866 | |
POWERLINK, OPC UA | ASi-5 + ASi-3 compatible | 2 ASi networks, 2 ASi-5/ASi-3 Masters | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | openSAFETY over POWERLINK + Safe Link | BWU3865 | |
PROFINET, OPC UA | ASi-5 + ASi-3 compatible | 1 ASi network, 1 ASi-5/ASi-3 Master | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | Safe Link | BWU3863 | |
PROFINET, OPC UA | ASi-5 + ASi-3 compatible | 1 ASi network, 1 ASi-5/ASi-3 Master | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | PROFIsafe (F-CPU) + Safe Link | BWU3862 | |
Sercos, OPC UA | ASi-5 + ASi-3 compatible | 2 ASi networks, 2 ASi-5/ASi-3 Masters | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | safe Schneider drives over Sercos + Safe Link | BWU3861 | |
Sercos, OPC UA | ASi-5 + ASi-3 compatible | 2 ASi networks, 2 ASi-5/ASi-3 Masters | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | CIP Safety over Sercos + Safe Link | BWU3860 | |
EtherCAT, OPC UA | ASi-5 + ASi-3 compatible | 2 ASi networks, 2 ASi-5/ASi-3 Masters | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | FSoE + Safe Link | BWU3858 | |
EtherNet/IP + ModbusTCP, OPC UA | ASi-5 + ASi-3 compatible | 2 ASi networks, 2 ASi-5/ASi-3 Masters | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | CIP Safety over EtherNet/IP + Safe Link | BWU3857 | |
EtherCAT, OPC UA | ASi-5 + ASi-3 compatible | 1 ASi network, 1 ASi-5/ASi-3 Master | yes, max. 4 A/ASi network | - | - | - | BWU3854 | |
PROFINET, OPC UA | ASi-5 + ASi-3 compatible | 2 ASi networks, 2 ASi-5/ASi-3 Masters | yes, max. 4 A/ASi network | - | - | - | BWU3852 | |
EtherNet/IP + ModbusTCP, OPC UA | ASi-5 + ASi-3 compatible | 2 ASi networks, 2 ASi-5/ASi-3 Masters | yes, max. 4 A/ASi network | - | - | - | BWU3851 | |
EtherNet/IP + ModbusTCP, OPC UA | ASi-5 + ASi-3 compatible | 1 ASi network, 1 ASi-5/ASi-3 Master | yes, max. 4 A/ASi network | - | - | - | BWU3849 | |
PROFINET, OPC UA | ASi-5 + ASi-3 compatible | 1 ASi network, 1 ASi-5/ASi-3 Master | yes, max. 8 A/ASi network | - | - | - | BWU3848 | |
PROFINET, OPC UA | ASi-5 + ASi-3 compatible | 1 ASi network, 1 ASi-5/ASi-3 Master | yes, max. 4 A/ASi network | - | - | - | BWU3847 | |
Sercos, OPC UA | ASi-5 + ASi-3 compatible | 2 ASi networks, 2 ASi-5/ASi-3 Masters | yes, max. 4 A/ASi network | no local safe input | no local safe output | CIP Safety over Sercos + Safe Link | BWU3845 | |
PROFINET, OPC UA | ASi-5 + ASi-3 compatible | 2 ASi networks, 2 ASi-5/ASi-3 Masters | yes, max. 4 A/ASi network | no local safe input | no local safe output | PROFIsafe (F-CPU) + Safe Link | BWU3833 | |
POWERLINK, OPC UA | ASi-5 + ASi-3 compatible | 2 ASi networks, 2 ASi-5/ASi-3 Masters | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | Safe Link | BWU3828 | |
EtherNet/IP + ModbusTCP, OPC UA | ASi-5 + ASi-3 compatible | 2 ASi networks, 2 ASi-5/ASi-3 Masters | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | Safe Link | BWU3825 | |
EtherNet/IP + ModbusTCP, OPC UA | ASi-3 compatible | 1 ASi network, 1 ASi-3 Master | yes, max. 4 A/ASi network | - | - | - | BWU3822 | |
EtherNet/IP + ModbusTCP, OPC UA | ASi-3 compatible | 2 ASi networks, 2 ASi-3 Masters | yes, max. 4 A/ASi network | - | - | - | BWU3736 | |
EtherNet/IP + ModbusTCP, OPC UA | ASi-3 compatible | 2 ASi networks, 2 ASi-3 Masters | no, max. 8 A/ASi network, redundant supply | - | - | - | BWU3735 | |
EtherNet/IP + ModbusTCP, OPC UA | ASi-3 compatible | 1 ASi network, 1 ASi-3 Master | no, max. 8 A/ASi network | - | - | - | BWU3734 | |
EtherNet/IP + ModbusTCP, OPC UA | ASi-3 compatible | 2 ASi networks, 2 ASi-3 Masters | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | CIP Safety over EtherNet/IP + Safe Link | BWU3683 | |
PROFINET, OPC UA | ASi-5 + ASi-3 compatible | 2 ASi networks, 2 ASi-5/ASi-3 Masters | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | PROFIsafe (F-CPU) + Safe Link | BWU3674 | |
POWERLINK | ASi-3 compatible | 2 ASi networks, 2 ASi-3 Masters | yes, max. 4 A/ASi network | - | - | - | BWU3593 | |
EtherCAT, OPC UA | ASi-5 + ASi-3 compatible | 1 ASi network, 1 ASi-5/ASi-3 Master | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | FSoE + Safe Link | BWU3583 | |
EtherNet/IP + ModbusTCP | ASi-3 compatible | 2 ASi networks, 2 ASi-3 Masters | no, max. 8 A/ASi network, redundant supply | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | Safe Link | BWU3544 | |
EtherNet/IP + ModbusTCP | ASi-3 compatible | 2 ASi networks, 2 ASi-3 Masters | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | Safe Link | BWU3543 | |
EtherNet/IP + ModbusTCP | ASi-3 compatible | 1 ASi network, 1 ASi-3 Master | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | Safe Link | BWU3542 | |
POWERLINK | ASi-3 compatible | 2 ASi networks, 2 ASi-3 Masters | no, max. 8 A/ASi network, redundant supply | - | - | - | BWU3537 | |
PROFINET | ASi-3 compatible | 2 ASi networks, 2 ASi-3 Masters | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | PROFIsafe (F-CPU) + Safe Link | BWU3367 | |
PROFINET | ASi-3 compatible | 2 ASi networks, 2 ASi-3 Masters | yes, max. 4 A/ASi network | - | - | - | BWU3363 | |
BACnet/IP, OPC UA | ASi-3 compatible | 2 ASi networks, 2 ASi-3 Masters | no, max. 8 A/ASi network, redundant supply | - | - | - | BWU3356 | |
POWERLINK | ASi-3 compatible | 1 ASi network, 1 ASi-3 Master | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | Safe Link | BWU3177 | |
POWERLINK | ASi-3 compatible | 2 ASi networks, 2 ASi-3 Masters | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | Safe Link | BWU3176 | |
EtherCAT | ASi-3 compatible | 1 ASi network, 1 ASi-3 Master | yes, max. 4 A/ASi network | - | - | - | BWU3058 | |
PROFIBUS | ASi-3 compatible | 1 ASi network, 1 ASi-3 Master | yes, max. 4 A/ASi network | - | - | - | BWU3053 | |
CC-Link | ASi-3 compatible | 1 ASi network, 1 ASi-3 Master | yes, max. 4 A/ASi network | - | - | - | BWU3051 | |
DeviceNet | ASi-3 compatible | 1 ASi network, 1 ASi-3 Master | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | Safe Link | BWU2972 | |
EtherCAT | ASi-3 compatible | 2 ASi networks, 2 ASi-3 Masters | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | Safe Link | BWU2944 | |
PROFINET | ASi-3 compatible | 1 ASi network, 1 ASi-3 Master | yes, max. 4 A/ASi network | - | - | - | BWU2919 | |
CC-Link | ASi-3 compatible | 1 ASi network, 1 ASi-3 Master | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | Safe Link | BWU2833 | |
PROFINET | ASi-3 compatible | 2 ASi networks, 2 ASi-3 Masters | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | Safe Link | BWU2828 | |
PROFIBUS | ASi-3 compatible | 2 ASi networks, 2 ASi-3 Masters | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | Safe Link | BWU2822 | |
PROFIBUS | ASi-3 compatible | 1 ASi network, 1 ASi-3 Master | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | PROFIsafe (F-CPU) | BWU2819 | |
CANopen | ASi-3 compatible | 1 ASi network, 1 ASi-3 Master | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | Safe Link | BWU2804 | |
PROFINET | ASi-3 compatible | 1 ASi network, 1 ASi-3 Master | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | Safe Link | BWU2798 | |
EtherCAT | ASi-3 compatible | 1 ASi network, 1 ASi-3 Master | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | Safe Link | BWU2797 | |
PROFINET | ASi-3 compatible | 1 ASi network, 1 ASi-3 Master | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | PROFIsafe (F-CPU) | BWU2794 | |
PROFIBUS | ASi-3 compatible | 1 ASi network, 1 ASi-3 Master | yes, max. 4 A/ASi network | 3 x 2 channels | 6 release circuits, 6 x electronic safe outputs | Safe Link | BWU2793 | |
PROFINET | ASi-3 compatible | 1 ASi network, 1 ASi-3 Master | no, max. 8 A/ASi network | - | - | - | BWU2729 | |
EtherCAT | ASi-3 compatible | 2 ASi networks, 2 ASi-3 Masters | yes, max. 4 A/ASi network | - | - | - | BWU2720 | |
CC-Link | ASi-3 compatible | 1 ASi network, 1 ASi-3 Master | no, max. 8 A/ASi network | - | - | - | BWU2611 | |
PROFIBUS | ASi-3 compatible | 2 ASi networks, 2 ASi-3 Masters | yes, max. 4 A/ASi network | - | - | - | BWU2546 | |
PROFIBUS | ASi-3 compatible | 2 ASi networks, 2 ASi-3 Masters | no, max. 8 A/ASi network, redundant supply | - | - | - | BWU2545 | |
PROFIBUS | ASi-3 compatible | 1 ASi network, 1 ASi-3 Master | no, max. 8 A/ASi network | - | - | - | BWU2544 | |
EtherCAT | ASi-3 compatible | 2 ASi networks, 2 ASi-3 Masters | no, max. 8 A/ASi network, redundant supply | - | - | - | BWU2163 | |
EtherCAT | ASi-3 compatible | 1 ASi network, 1 ASi-3 Master | no, max. 8 A/ASi network | - | - | - | BWU2162 | |
RS 232 | ASi-3 compatible | 1 ASi network, 1 ASi-3 Master | no, max. 8 A/ASi network | - | - | - | BWU1955 | |
CANopen | ASi-3 compatible | 2 ASi networks, 2 ASi-3 Masters | yes, max. 4 A/ASi network | - | - | - | BWU1823 | |
CANopen | ASi-3 compatible | 2 ASi networks, 2 ASi-3 Masters | no, max. 8 A/ASi network, redundant supply | - | - | - | BWU1822 | |
CANopen | ASi-3 compatible | 1 ASi network, 1 ASi-3 Master | no, max. 8 A/ASi network | - | - | - | BWU1821 | |
DeviceNet | ASi-3 compatible | 2 ASi networks, 2 ASi-3 Masters | yes, max. 4 A/ASi network | - | - | - | BWU1820 | |
DeviceNet | ASi-3 compatible | 2 ASi networks, 2 ASi-3 Masters | no, max. 8 A/ASi network, redundant supply | - | - | - | BWU1819 | |
DeviceNet | ASi-3 compatible | 1 ASi network, 1 ASi-3 Master | no, max. 8 A/ASi network | - | - | - | BWU1818 | |
PROFIBUS | ASi-3 compatible | 1 ASi network, 1 ASi-3 Master | no, max. 8 A/ASi network | - | - | - | BWU1746 | |
Modbus/RTU; RS 485 | ASi-3 compatible | 2 ASi networks, 2 ASi-3 Masters | yes, max. 4 A/ASi network | - | - | - | BWU1643 | |
Modbus/RTU; RS 485 | ASi-3 compatible | 2 ASi networks, 2 ASi-3 Masters | no, max. 8 A/ASi network, redundant supply | - | - | - | BWU1642 | |
Modbus/RTU; RS 485 | ASi-3 compatible | 1 ASi network, 1 ASi-3 Master | no, max. 8 A/ASi network | - | - | - | BWU1641 | |
ControlLogix | ASi-3 compatible | 2 ASi networks, 2 ASi-3 Masters | no, max. 8 A/ASi network | - | - | - | BWU1488 | |
CompactLogix, MicroLogix1500 | ASi-3 compatible | 1 ASi network, 1 ASi-3 Master | no, max. 8 A/ASi network | - | - | - | BWU1416 | |
complete set ControlLogix | ASi-3 compatible | 2 ASi networks, 2 ASi-3 Masters | no, max. 8 A/ASi network | - | - | - | BW4724 | |
EtherNet/IP + ModbusTCP, OPC UA | ASi-5 compatible | 1 ASi network, 1 ASi-5/ASi-3 Master | yes, max. 4 A/ASi network | - | - | - | BW4229 | |
PROFINET, OPC UA | ASi-5 compatible | 1 ASi network, 1 ASi-5/ASi-3 Master | yes, max. 4 A/ASi network | - | - | - | BW4211 | |
complete set CompactLogix, MicroLogix1500 | ASi-3 compatible | 1 ASi network, 1 ASi-3 Master | no, max. 8 A/ASi network | - | - | - | BW1610 |
