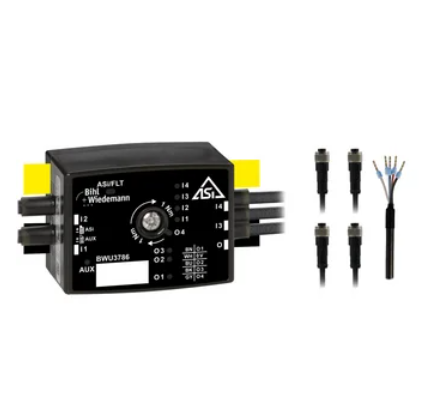

Bihl+Wiedemann 的有源分配器 ASi 使您能够使任何传感器或执行器具有 AS-Interface 功能。即使没有自己的 ASi 终端的模块也可以使用这些活跃的 ASi 分销商轻松集成到现有的 ASi 网络中。其他功能包括使用 M8 或 M12 连接器、飞线或推入式端子的可单独配置的连接选项，以符合客户的应用，以及紧凑的外形，使其非常适合在电缆管道中使用。

Figure	Inputs digital	Outputs digital	Input voltage (sensor supply)	Output voltage (actuator supply)	Connection	Round cable	Flat design, installation in cable duct possible	ASi address	Special function	Article No.
BWU3675	4	4 x electronic	out of ASi	out of AUX	8 x M12 cable sockets, straight, 5 poles + 1 x ASi addressing cable socket	I1/O4: 0,35 m, I2/O3: 0,25 m, I3/O2: 0,15 m, I4/O1: 0,05 m	yes, depth: 35 mm	1 AB address	-	BWU3675
BWU3676	4	4 x electronic	out of AUX	out of AUX	3 x M12 cable sockets, straight, 5 poles + 2 x M8 snap-in cable sockets, straight, 4 poles + 1 x ASi addressing cable socket	I1/I2: 0,1 m, I3/I4: 0,3 m, O1/O2: 0,2 m, O3/O4: 0,3 m	yes, depth: 35 mm	1 AB address	-	BWU3676
BWU3786	4	4 x electronic	out of ASi	out of AUX	4 x M12 cable sockets, straight, 5 poles	2 m	yes, depth: 35 mm	1 AB address	-	BWU3786
BWU3577	4	2 x electronic	out of ASi	out of ASi	6 x M8 cable sockets, straight, 4 poles	I: 0,15 m, O: 0,50 m	yes, depth: 35 mm	1 AB address	optimized to control valves Festo CPE14 / VUVG-L14 via ASi	BWU3577
BWU3555	4	4 x electronic	out of ASi	out of AUX	4 x M8 cable sockets, straight, 4 poles	0,20 m	yes, depth: 35 mm	1 AB address	-	BWU3555
BWU3695	2	2 x electronic	out of ASi	out of ASi	2 x M12 cable sockets, straight, 5 poles + 2 x M8 cable socket, straight, 3 poles	I: 0,20 m, O: 0,40 m	yes, depth: 35 mm	1 AB address	-	BWU3695
BWU3632	4	-	out of ASi	-	4 x M12 cable sockets, straight, 5 poles	0,30 m	yes, depth: 35 mm	1 AB address	-	BWU3632
BWU3633	4	-	out of ASi	-	4 x M12 cable sockets, straight, 5 poles	2 m	yes, depth: 35 mm	1 AB address	-	BWU3633
BWU3730	4	-	out of ASi	-	4 x M12 cable socket, straight, 5 poles + 1 x ASi addressing cable socket	I1: 0,35 m, I2: 0,25 m, I3: 0,15 m, I4: 0,05 m	yes, depth: 35 mm	1 AB address	-	BWU3730
BWU3608	4	-	out of AUX	-	3 x round cable/connecting wires + 1 x M8 cable socket, straight, 4 poles	1 m	yes, depth: 35 mm	1 AB address	-	BWU3608
BWU4727	up to 4, depending on configuration	up to 4 x electronic, depending on configuration	out of AUX	out of AUX	2 x M12 cable sockets, straight, 5 poles	1 m	yes, depth: 35 mm	1 AB address	-	BWU4727
BWU4172	4	4 x electronic	out of ASi	out of AUX	4 x round cable/connecting wires	1 m	yes, depth: 35 mm	1 AB address	-	BWU4172
BWU3317	4	4 x electronic	out of ASi	out of AUX	2 x round cables/connecting wires	1 m	yes, depth: 35 mm	1 AB address	-	BWU3317
BW3507	4	4 x electronic	out of ASi	out of AUX	2 x M12 cable sockets, straight, 5 poles	1 m	yes, depth: 35 mm	1 AB address	-	BW3507
BWU3326	4	4 x electronic	out of ASi	out of ASi	2 x round cables/connecting wires	1 m	yes, depth: 35 mm	1 AB address	-	BWU3326
BWU3785	3	4 x electronic	out of AUX	out of AUX	2 x M12 cable sockets, straight, 5 poles	X1: 0,25 m, X2: 2 m	yes, depth: 35 mm	1 AB address	to connect K50Pro Banner Stacklight to ASi	BWU3785
BWU4923	4	-	out of ASi	-	2 x round cables/connecting wires	5 m	yes, depth: 35 mm	1 AB address	-	BWU4923
BWU3374	4	-	out of ASi	-	2 x round cables/connecting wires	0,50 m	yes, depth: 35 mm	1 AB address	-	BWU3374
BWU3534	1	4 x electronic	out of ASi	out of ASi	1 x M12 cable socket, straight, 5 poles + 1 x M12 cable socket, angled, 5 poles	0,30 m	yes, depth: 35 mm	1 AB address	to connect Banner K50 Series EZ-Light, type K50L...PQ + Wenglor light curtains Pick-to-Light	BWU3534
BWU3729	-	4 x electronic	-	out of ASi	1 x round cable/connecting wires + 1 x ASi addressing cable socket	4 m	yes, depth: 35 mm	1 AB address	-	BWU3729
BW3500	4	4 x electronic	out of ASi	out of ASi	1 x round cable/connecting wires	5 m	yes, depth: 35 mm	1 AB address	-	BW3500
BWU3606	4	4 x electronic	out of ASi	out of ASi	1 x round cable/connecting wires	2 m	yes, depth: 35 mm	1 AB address	to connect Stack-Light Banner TL50GYRAQ + audible alarm (180 mA) to ASi	BWU3606
BW3377	4	4 x electronic	out of AUX	out of AUX	1 x M12 cable socket, straight, 8 poles	1 m	yes, depth: 35 mm	1 AB address	to connect Euchner MGB to ASi	BW3377
BWU4784	2	2 x electronic	out of AUX	out of AUX	1 x M12 cable socket, straight, 8 poles	1 m	yes, depth: 35 mm	1 AB address	to control Linak LA12 drives	BWU4784
BWU3607	2	2 x electronic	out of AUX	out of AUX	1 x round cable/connecting wires	3 m	yes, depth: 35 mm	1 AB address	to control Linak LA12 drives	BWU3607
BWU3639	1	3 x electronic	out of ASi	out of ASi	1 x M12 cable socket, angled, 8 poles	0,30 m	yes, depth: 35 mm	1 AB address	to connect Banner K50 Series EZ-LIGHT, Typ K50AP...F2Q to ASi	BWU3639
BWU4077	2 x IO-Link Port + 1 x electronic	2 x IO-Link Port	out of AUX	out of AUX	2 x M12 cable sockets, straight, 5 poles	1 m	yes, depth: 35 mm	1 ASi-5 address	-	BWU4077
BWU4748	-	1 x IO-Link Port	out of ASi	-	1 x M12 cable socket, straight, 5 poles	1 m	yes, depth: 35 mm	1 ASi-5 address	-	BWU4748
BWU4088	1 x IO-Link Port	1 x IO-Link Port	out of AUX	out of AUX	1 x M12 cable socket, straight, 5 poles	1 m	yes, depth: 35 mm	1 ASi-5 address	-	BWU4088
BWU3498	4	-	out of AUX	-	2 x M12 cable sockets, straight, 5 poles	0,40 m	yes, depth: 19 mm	1 AB address	-	BWU3498
BWU3628	2	2 x electronic	out of AUX	out of AUX	1 x round cable/connecting wires + 1 x M12 cable sockets, straight, 5 poles	I: 0,4 m, O: 1,5 m	yes, depth: 19 mm	1 AB address	-	BWU3628
BWU3497	2	2 x electronic	out of AUX	out of AUX	2 x M12 cable sockets, straight, 5 poles	0,40 m	yes, depth: 19 mm	1 AB address	-	BWU3497
BWU3602	2	2 x electronic	out of AUX	out of AUX	2 x round cables/connecting wires	1 m	yes, depth: 19 mm	1 AB address	-	BWU3602
BWU4879	2	1 x electronic	out of AUX	out of AUX	1 x M12 cable socket, straight, 5 poles + 1 x round cable/connecting wires	1 m	yes, depth: 19 mm	1 AB address	-	BWU4879
BWU3250	2	1 x electronic	out of AUX	out of AUX	2 x M12 cable sockets, angled, 5 poles	1 m	yes, depth: 19 mm	1 AB address	-	BWU3250
BWU3400	2	2 x electronic	out of ASi	out of ASi	1 x M12 cable socket, straight, 8 poles	1 m	yes, depth: 19 mm	1 AB address	-	BWU3400
BWU3642	2	-	out of ASi	-	1 x M12 cable socket, angled, 5 poles	1 m	yes, depth: 19 mm	1 AB address	-	BWU3642
BWU3564	2	-	out of AUX	-	1 x M12 cable socket, angled, 5 poles	1 m	yes, depth: 19 mm	1 AB address	-	BWU3564
BW3300	-	4 x electronic	-	out of AUX	1 x round cable/connecting wires	1 m	yes, depth: 19 mm	1 AB address	-	BW3300
BWU3487	-	4 x electronic	-	out of AUX	1 x round cable/connecting wires	5 m	yes, depth: 19 mm	1 AB address	-	BWU3487
BWU4766	-	4 x electronic	-	out of AUX	1 x round cable/connecting wires	3 m	yes, depth: 19 mm	1 AB address	-	BWU4766
BWU3788	-	4 x electronic	-	out of AUX	1 x M12 cable socket, straight, 5 poles	5 m	yes, depth: 19 mm	1 AB address	-	BWU3788
BWU3712	-	4 x electronic	-	out of AUX	1 x M12 cable socket, straight, 5 poles	3 m	yes, depth: 19 mm	1 AB address	-	BWU3712
BWU4763	-	4 x electronic	-	out of AUX	1 x M12 cable socket, straight, 5 poles	10 m	yes, depth: 19 mm	1 AB address	-	BWU4763
BWU4087	-	4 x electronic	-	out of AUX	1 x M12 cable socket, straight, 5 poles	2 m	yes, depth: 19 mm	1 AB address	to connect general-purpose display banner K50 Pro to ASi	BWU4087
BWU3349	4	-	out of AUX	-	8 x push in terminals	no	yes, depth: 19 mm	1 AB address	-	BWU3349
BWU3414	3	1 x electronic	out of AUX	out of AUX	8 x push in terminals	no	yes, depth: 19 mm	1 AB address	-	BWU3414
BWU3342	-	4 x electronic	-	out of AUX	8 x push in terminals	no	yes, depth: 19 mm	1 AB address	-	BWU3342
BWU4083	-	1 x RGB Light	-	out of AUX	1 x M8 cable socket, straight, 4 poles	1 m	yes, depth: 35 mm	1 ASi-5 address	-	BWU4083
BWU4101	-	1 x RGB/RGBW LED Stripe	-	out of AUX	1 x round cable/connecting wires	0,20 m	yes, depth: 35 mm	1 ASi-5 address	-	BWU4101
