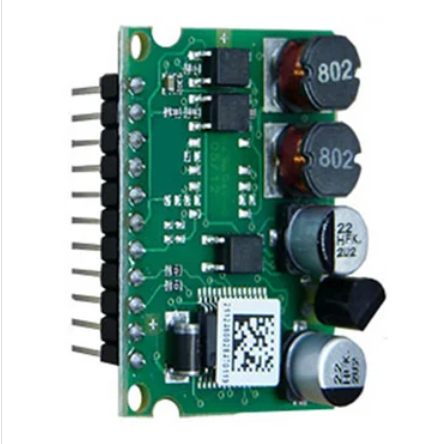

电路板模块使传感器和执行器 OEM 能够借助完全设计和认证的 ASi 模块板使其模块具有 ASi 功能，该模块板可以简单轻松地集成到相应的设备中。Bihl+Wiedemann 提供各种 PCB 模块，这些模块具有各种连接选项，包括灌封或未灌封的。根据要求，我们还可以提供具有成本效益的修改版本或基于套件系统的新开发版本。

Figure	Circuit board dimensions	Inputs digital	Outputs digital	Input voltage (sensor supply)	Output voltage (actuator supply)	PCB connection	Coating	ASi connection	ASi address	Article No.
BWR4771	-	4 x IO-Link Port + 4 x electronic	4 x IO-Link Port	out of AUX	out of AUX	wiring pins, straight	no	wiring pin, straight	1 ASi-5 address	BWR4771
BWR4736	-	up to 16, depending on configuration	up to 16 x electronic, depending on configuration	-	out of AUX	wiring pins, straight	no	wiring pin, straight	1 ASi-5 address	BWR4736
BWR4978	-	up to 32, depending on configuration	up to 32 x electronic, depending on configuration	-	out of AUX	wiring pins, straight	no	wiring pin, straight	1 ASi-5 address	BWR4978
BWR1566	29,7 mm x 36,5 mm	1	1 x electronic	out of ASi	out of ASi	wiring pins, straight	no	wiring pin, straight	1 AB address	BWR1566
BWR1443	29,7 mm x 36,5 mm	2	2 x electronic	out of ASi	out of ASi	screw terminals	no	screw terminals	1 AB address	BWR1443
BWR3189	29,7 mm x 36,5 mm	2	2 x electronic	out of ASi	out of ASi	wiring pins, straight	no	wiring pin, straight	1 AB address	BWR3189
BWR2393	29,7 mm x 36,5 mm	2 (inputs mirrored)	2 x electronic	out of ASi	out of ASi	screw terminals	thin coated	screw terminals	1 AB address	BWR2393
BWR1957	29,7 mm x 36,5 mm	2	2 x electronic	out of ASi	out of ASi	solder lugs, screw terminals only at ASi pins	no	screw terminals	1 AB address	BWR1957
BWR1421	29,7 mm x 36,5 mm	2	2 x electronic	out of ASi	out of ASi	solder lugs	no	solder lugs	1 AB address	BWR1421
BWR3067	43 mm x 30 mm	-	2 x electronic	out of ASi	out of ASi	connecting wires, 200 mm	thick coated	connecting wires, 200 mm	1 Single address	BWR3067
BWR2426	43 mm x 30 mm	-	2 x electronic	out of ASi	out of ASi	connecting wires, 100 mm	thick coated	connecting wires, 100 mm	1 Single address	BWR2426
BWR2521	43 mm x 30 mm	-	2 x electronic	out of ASi	out of ASi	connecting wires, 100 mm + contact pins	thick coated	connecting wires, 100 mm	1 Single address	BWR2521
BWR3068	43 mm x 30 mm	2	2 x electronic	out of ASi	out of ASi	connecting wires, 200 mm	thick coated	connecting wires, 200 mm	1 AB address	BWR3068
BWR2574	43 mm x 30 mm	2	2 x electronic	out of ASi	out of ASi	connecting wires, 100 mm	thick coated	connecting wires, 100 mm	1 AB address	BWR2574
BWR2522	43 mm x 30 mm	2	2 x electronic	out of ASi	out of ASi	connecting wires, 100 mm + contact pins	thick coated	connecting wires, 100 mm	1 AB address	BWR2522
BWR1896	73 mm x 37,5 mm	-	2 x electronic	out of ASi	out of AUX	plug-in screw terminals	no	plug-in connecting wires	1 Single address	BWR1896
BWR1751	73 mm x 37,5 mm	-	2 x electronic	out of ASi	out of AUX	screw terminals	no	screw terminals	1 Single address	BWR1751
BWR1387	73 mm x 37,5 mm	4	3 x electronic	out of ASi	out of ASi	screw terminals	no	screw terminals	1 AB address	BWR1387
BWR2229	73 mm x 37,5 mm	4	3 x electronic	out of ASi	out of ASi	plug-in spring-type terminals	no	plug-in spring-type terminals	1 AB address	BWR2229
BWR1386	73 mm x 37,5 mm	4	3 x electronic	out of ASi	out of ASi	wiring pins, angled	no	wiring pin, angled	1 AB address	BWR1386
BWR1408	73 mm x 37,5 mm	4	3 x electronic	out of ASi	out of ASi	solder lugs	no	solder lugs	1 AB address	BWR1408
BWR1682	73 mm x 37,5 mm	4	3 x electronic	out of ASi	out of AUX	solder lugs	no	solder lugs	1 AB address	BWR1682
BWR1219	73 mm x 37,5 mm	4	4 x electronic	out of ASi	out of ASi	screw terminals	no	screw terminals	1 Single address	BWR1219
BWR1389	73 mm x 37,5 mm	4	4 x electronic	out of AUX	out of AUX	screw terminals	no	screw terminals	1 Single address	BWR1389
BWR1470	73 mm x 37,5 mm	4	4 x electronic	out of ASi	out of ASi	screw terminals	no	screw terminals	1 Single address	BWR1470
BWR3190	73 mm x 37,5 mm	4	4 x electronic	out of ASi	out of ASi	screw terminals	thin coated	screw terminals	1 AB address	BWR3190
BWR1789	73 mm x 37,5 mm	4	4 x electronic	out of ASi	out of ASi	screw terminals	thin coated	screw terminals	1 Single address	BWR1789
BWR1628	73 mm x 37,5 mm	4	4 x electronic	out of ASi	out of AUX	screw terminals	no	screw terminals	1 Single address	BWR1628
BWR2803	73 mm x 37,5 mm	4	4 x electronic	out of AUX	out of AUX	screw terminals	thick coated	screw terminals	1 AB address	BWR2803
BWR3215	73 mm x 37,5 mm	4	4 x electronic	out of AUX	out of AUX	wiring pins, angled	thin coated	wiring pin, angled	1 AB address	BWR3215
BWR3214	73 mm x 37,5 mm	4	4 x electronic	out of AUX	out of AUX	wiring pins, straight	thin coated	wiring pin, straight	1 AB address	BWR3214
BWR3213	73 mm x 37,5 mm	4	4 x electronic	out of AUX	out of AUX	wiring pins, straight	thick coated	wiring pin, straight	1 AB address	BWR3213
BWR1889	73 mm x 37,5 mm	4	4 x electronic	out of ASi	out of ASi	plug-in spring-type terminals	no	plug-in spring-type terminals	1 AB address	BWR1889
BWR2597	73 mm x 37,5 mm	4	4 x electronic	out of ASi	out of ASi	connecting wires, 200 mm	thick coated	connecting wires, 200 mm	1 Single address	BWR2597
BWR2571	73 mm x 37,5 mm	4	4 x electronic	out of ASi	out of ASi	connecting wires, 200 mm	thick coated	connecting wires, 200 mm	1 AB address	BWR2571
BWR1218	73 mm x 37,5 mm	4	4 x electronic	out of ASi	out of ASi	wiring pins, angled	no	wiring pin, angled	1 Single address	BWR1218
BWR2591	73 mm x 37,5 mm	4	4 x electronic	out of ASi	out of AUX	wiring pins, angled	no	wiring pin, angled	1 Single address	BWR2591
BWR1468	73 mm x 37,5 mm	4	4 x electronic	out of ASi	out of ASi	solder lugs	no	solder lugs	1 Single address	BWR1468
BWR2052	73 mm x 37,5 mm	4	4 x electronic	out of ASi	out of ASi	solder lugs	no	solder lugs	1 Single address	BWR2052
BWR2442	73 mm x 37,5 mm	4	4 x electronic	out of ASi	out of AUX	solder lugs	no	solder lugs	1 AB address	BWR2442
BWR3116	73 mm x 37,5 mm	4	4 x electronic	out of ASi	out of ASi	sockets	no	sockets	1 AB address	BWR3116
BWR2842	73 mm x 37,5 mm	4	-	out of ASi	-	connecting wires, 200 mm	thick coated	connecting wires, 200 mm	1 AB address	BWR2842
BWR1352	73 mm x 37,5 mm	8	-	out of ASi	-	screw terminals	no	screw terminals	2 AB addresses	BWR1352
BWR2774	73 mm x 37,5 mm	8	-	out of ASi	-	connecting wires, 200 mm	thick coated	connecting wires, 200 mm	2 AB addresses	BWR2774
BWR1351	73 mm x 37,5 mm	8	-	out of ASi	-	wiring pins, angled	no	wiring pin, angled	2 AB addresses	BWR1351
BWR1627	73 mm x 37,5 mm	-	6 x electronic	-	out of ASi	screw terminals	no	screw terminals	2 AB addresses	BWR1627
BW1899	104 mm x 41 mm	8	8 x electronic	out of ASi	out of ASi	wiring pins, angled	thin coated	wiring pin, angled	2 AB addresses	BW1899
BW1901	93 mm x 51 mm	16	16 x electronic	out of ASi	out of ASi	wiring pins, angled	thin coated	wiring pin, angled	4 AB addresses	BW1901
BWR3195	-	4	4 x electronic	out of ASi	out of ASi	plug-in spring-type terminals	no	plug-in spring-type terminals	1 AB address	BWR3195
BWR3192	73 mm x 37,5 mm	-	-	out of ASi	-	screw terminals	no	screw terminals	1 Single address	BWR3192
BWR2035	73 mm x 37,5 mm	-	-	out of ASi	-	wiring pins, angled	no	wiring pin, angled	1 Single address	BWR2035
BW2914	85 mm x 80 mm	2	2 x electronic	out of AUX	out of AUX	screw terminals	thick coated	screw terminals	1 Single address + 2 AB addresses	BW2914
