无源分配器

Bihl+Wiedemann 提供各种不同的无源分配器。它们配备了多达五个不同设计的 M12 或 M8（电缆）插座或连接线，从而为每种应用提供正确的连接。客户对连接类型或连接电缆长度的特殊要求也没有问


想了解更多产品详情内容，请咨询【销售专员】

Bihl+Wiedemann 提供各种不同的无源分配器。它们配备了多达五个不同设计的 M12 或 M8（电缆）插座或连接线，从而为每种应用提供正确的连接。

客户对连接类型或连接电缆长度的特殊要求也没有问题。


Figure
Type
Profile cable connection
Connection
Internal fuse
Round cable
Flat design, installation in cable duct possible
Housing
LED status display
Protection rating
Special function
Article No.
BWU3087BWU3087
Passive distributor ASi/AUX
1 x ASi, 1 x AUX 24 V
2 x M12 sockets, 5 poles
4 A, changeable
no
no
depth: 35 mm
yes
IP67
-
BWU3087
BWU3117BWU3117
Passive distributor ASi/AUX
1 x ASi, 1 x AUX 24 V
2 x M12 sockets, 5 poles
1 A, self-resetting
no
no
depth: 35 mm
yes
IP67
-
BWU3117
BWU3184BWU3184
Passive distributor ASi/AUX
1 x ASi, 1 x AUX 24 V
2 x M12 sockets, 5 poles
no
no
no
depth: 35 mm
yes
IP67
-
BWU3184
BWU3491BWU3491
Passive distributor ASi/AUX
1 x ASi, 1 x AUX 24 V
1 x M12 socket, 5 poles
4 A, changeable
no
no
depth: 35 mm
yes
IP67
-
BWU3491
BWU3492BWU3492
Passive distributor ASi/AUX
1 x ASi, 1 x AUX 24 V
1 x M12 socket, 5 poles
1 A, self-resetting
no
no
depth: 35 mm
yes
IP67
-
BWU3492
BWU3493BWU3493
Passive distributor ASi/AUX
1 x ASi, 1 x AUX 24 V
1 x M12 socket, 5 poles
no
no
no
depth: 35 mm
yes
IP67
-
BWU3493

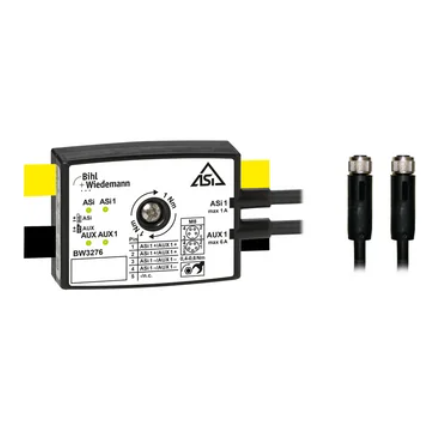

BW3276BW3276
Passive distributor ASi/AUX
1 x ASi, 1 x AUX 24 V
1 x M8 cable socket, straight, 5 poles + 1 x M8 cable socket, straight, 4 poles
8 A, slow-blow fuse + 1 A, self-resetting
0,20 m
yes, depth: 19 mm
depth: 19 mm
yes
IP67
-
BW3276
BW3681BW3681
Passive distributor ASi/AUX
1 x ASi, 1 x AUX 24 V
1 x M8 snap-in cable socket, straight, 4 poles
4 A, slow-blow fuse + 1 A, self-resetting
0,20 m
yes, depth: 19 mm
depth: 19 mm
yes
IP67
-
BW3681
BW3423BW3423
Passive distributor ASi/AUX
1 x ASi, 1 x AUX 24 V
1 x round cable/connecting wires
8 A slow-blow fuse
1,30 m
yes, depth: 19 mm
depth: 19 mm
yes
IP67
-
BW3423
BW3246BW3246
Passive distributor ASi/AUX
1 x ASi, 1 x AUX 24 V
1 x M12 cable socket, angled, 5 poles
1 A, self-resetting
2 m
yes, depth: 19 mm
depth: 19 mm
yes
IP67
to connect ASi devices via M12
BW3246
BWU3183BWU3183
Passive distributor ASi/AUX
1 x ASi, 1 x AUX 24 V
1 x M12 cable socket, angled, 5 poles
no
2 m
yes, depth: 19 mm
depth: 19 mm
no
IP67
to connect ASi devices via M12
BWU3183
BWU3408BWU3408
Passive distributor ASi/AUX
1 x ASi, 1 x AUX 24 V
1 x M12 cable socket, angled, 5 poles
no
1 m
yes, depth: 19 mm
depth: 19 mm
no
IP67
to connect ASi devices via M12
BWU3408
BW3911BW3911
Passive distributor ASi/AUX
1 x ASi, 1 x AUX 24 V
1 x M12 cable socket, straight, 5 poles
no
2 m
yes, depth: 19 mm
depth: 19 mm
no
IP67
to connect ASi devices via M12
BW3911
BWU3403BWU3403
Passive distributor ASi/AUX
1 x ASi, 1 x AUX 24 V
1 x M12 cable socket, straight, 5 poles
no
1 m
yes, depth: 19 mm
depth: 19 mm
no
IP67
to connect ASi devices via M12
BWU3403
BWU3778BWU3778
Passive distributor ASi/AUX
1 x ASi, 1 x AUX 24 V
1 x M12 cable socket, straight, 5 poles
no
0,30 m
yes, depth: 19 mm
depth: 19 mm
no
IP67
to connect ASi devices via M12
BWU3778
BW3805BW3805
Passive distributor ASi/AUX
1 x ASi, 1 x AUX 24 V
1 x M12 cable socket, straight, 5 poles
no
0,05 m
yes, depth: 19 mm
depth: 19 mm
no
IP67
to connect ASi devices via M12
BW3805
BW3315BW3315
Passive distributor ASi/AUX
1 x ASi, 1 x AUX 24 V
1 x round cable/connecting wires
no
5 m
yes, depth: 19 mm
depth: 19 mm
no
IP67
-
BW3315
BWU3314BWU3314
Passive distributor ASi/AUX
1 x ASi, 1 x AUX 24 V
1 x round cable/connecting wires
no
2 m
yes, depth: 19 mm
depth: 19 mm
no
IP67
-
BWU3314
BW3512BW3512
Passive distributor ASi/AUX
1 x ASi, 1 x AUX 24 V
1 x round cable/connecting wires
no
1,30 m
yes, depth: 19 mm
depth: 19 mm
no
IP67
-
BW3512
BWU3185BWU3185
Passive distributor ASi
2 x ASi
1 x M12 cable socket, angled, 5 poles
no
2 m
yes, depth: 19 mm
depth: 19 mm
no
IP67
-
BWU3185
BWU4242BWU4242
Passive distributor ASi
2 x ASi
1 x M12 cable socket, angled, 5 poles
no
1 m
yes, depth: 19 mm
depth: 19 mm
no
IP67
-
BWU4242
BWU3247BWU3247
Passive distributor ASi
2 x ASi
1 x M12 cable socket, straight, 5 poles
no
2 m
yes, depth: 19 mm
depth: 19 mm
no
IP67
-
BWU3247
BW3186BW3186
Passive distributor ASi
2 x ASi
1 x round cable/connecting wires
no
0,25 m
yes, depth: 19 mm
depth: 19 mm
no
IP67
-
BW3186
BW3524BW3524
Passive distributor ASi
2 x ASi
1 x round cable/connecting wires
no
5 m
yes, depth: 19 mm
depth: 19 mm
no
IP67
-
BW3524
BWU3407BWU3407
Passive distributor ASi
1 x ASi
1 x M12 cable socket, angled, 5 poles
no
1 m
yes, depth: 19 mm
depth: 19 mm
no
IP67
-
BWU3407
BWU4730BWU4730
Passive distributor ASi
2 x ASi
profile cable branch
2 A, self-resetting
no
yes, depth: 19 mm
depth: 19 mm
yes
IP67
-
BWU4730
BWU3157BWU3157
Passive distributor ASi
2 x ASi
profile cable branch
no
no
yes, depth: 19 mm
depth: 19 mm
no
IP67
-
BWU3157
BW3513BW3513
Passive distributor AUX
1 x AUX 24 V
1 x M12 power cable socket, straight, T-coded, 4 poles
8 A slow-blow fuse
1 m
yes, depth: 19 mm
depth: 19 mm
yes
IP67
-
BW3513
BW3766BW3766
Passive distributor AUX
2 x AUX 24 V
1 x M12 cable socket, straight, 5 poles
1 A, self-resetting
1 m
yes, depth: 19 mm
depth: 19 mm
yes
IP67
-
BW3766
BW3381BW3381
Passive distributor AUX
2 x AUX 24 V
1 x round cable/connecting wires
1 A, self-resetting
3 m
yes, depth: 19 mm
depth: 19 mm
yes
IP67
-
BW3381
BW3763BW3763
Passive distributor AUX
2 x AUX 24 V (galvanically separated)
2 x M8 cable sockets, straight, 4 poles
4 A slow-blow fuse
1,5 m
yes, depth: 19 mm
depth: 19 mm
yes
IP67
power supply of Beckhoff Ethercat I/O Boxes (EPxxxx)
BW3763
BWU4922BWU4922
Passive distributor AUX
1 x AUX 24 V
1 x M12 cable plug, straight, 4 poles
no
0,30 m
yes, depth: 19 mm
depth: 19 mm
no
IP67
for switching loads ≤6 A
BWU4922
BW4725BW4725
Passive distributor AUX
1 x AUX 24 V
1 x M12 cable plug, straight, 4 poles
no
0,30 m
yes, depth: 19 mm
depth: 19 mm
no
IP67
for switching loads ≥100 mA
BW4725
BW4760BW4760
Passive distributor AUX
1 x AUX 24 V
1 x M12 cable plug, straight, 4 poles
no
0,30 m
yes, depth: 19 mm
depth: 19 mm
no
IP67
for switching loads ≤100 mA
BW4760
BWU4709BWU4709
Passive distributor AUX
2 x AUX 24 V
1 x round cable/connecting wires 1.5 mm²
no
2 m
yes, depth: 25 mm
depth: 25 mm
no
IP67
-
BWU4709
BWU4897BWU4897
Passive distributor AUX
2 x AUX 24 V, 16 A/20 A
1 x round cable/connecting wires 2.5 mm²
no
1 m
yes, depth: 25 mm
depth: 25 mm
no
IP67
infeed module
BWU4897
BWU3307BWU3307
Passive distributor AUX
2 x AUX 24 V, 16 A/20 A
2 x connecting wires 2,5 mm²
no
2 m
yes, depth: 19 mm
depth: 19 mm
no
IP67
infeed module
BWU3307
BWU4961BWU4961
Passive distributor AUX
2 x AUX 48 V, 16 A/20 A
profile cable branch
no
no
yes, depth: 19 mm
depth: 19 mm
no
IP67
-
BWU4961
BWU3306BWU3306
Passive distributor AUX
2 x AUX 24 V, 16 A/20 A
profile cable branch
no
no
yes, depth: 19 mm
depth: 19 mm
no
IP67
-
BWU3306
BWU4247BWU4247
Passive distributor AUX
2 x AUX 24 V (galvanically separated)
1 x M12 power cable socket, straight, L-coded, 4 poles
8 A slow-blow fuse
1 m
yes, depth: 25 mm
depth: 25 mm
yes
IP67
-
BWU4247
BWU4765BWU4765
Passive distributor AUX
1 x AUX 24 V, 1 x AUX 48 V
1 x M12 power cable socket, straight, T-coded, 4 poles
8 A slow-blow fuse
1 m
yes, depth: 25 mm
depth: 25 mm
yes
IP67
-
BWU4765
BWU4912BWU4912
Passive distributor AUX
1 x AUX 24 V, 1 x AUX 48 V
1 x M12 power cable socket, straight, L-coded, 4 poles
no
1 m
yes, depth: 25 mm
depth: 25 mm
yes
IP67
-
BWU4912
BWU4875BWU4875
Passive distributor AUX
1 x AUX 24 V
1 x M12 power cable socket, straight, T-coded, 4 poles
8 A slow-blow fuse
1 m
yes, depth: 25 mm
depth: 25 mm
yes
IP67
-
BWU4875
BWU4948BWU4948
Passive distributor AUX
2 x AUX 24 V, 16 A/20 A
1 x M12 power cable socket, straight, L-coded, 4 poles
no
2 m
yes, depth: 25 mm
depth: 25 mm
no
IP67
-
BWU4948
BWU4082BWU4082
Passive distributor AUX
2 x AUX 24 V, 16 A/20 A
1 x M12 power cable plug, straight, L-coded, 4 poles,
no
1 m
yes, depth: 25 mm
depth: 25 mm
no
IP67
-
BWU4082
BW3568BW3568
Passive distributor AUX
2 x AUX 24 V, 16 A/20 A
1 x M12 power cable plug, straight, T-coded, 4 poles
no
1 m
yes, depth: 25 mm
depth: 25 mm
no
IP67
-
BW3568
BWU4913BWU4913
Passive distributor AUX
2 x AUX 48 V
1 x M12 power cable socket, straight, L-coded, 4 poles
no
1 m
yes, depth: 25 mm
depth: 25 mm
yes
IP67
-
BWU4913
BWU4900BWU4900
Passive distributor AUX
2 x AUX 48 V (galvanically separated)
1 x M12 power cable socket, straight, L-coded, 4 poles
no
2 m
yes, depth: 25 mm
depth: 25 mm
no
IP67
-
BWU4900
BWU4750BWU4750
Passive distributor AUX
1 x AUX 24 V, 1 x AUX 48 V
1 x M12-Power cable socket, angled, L coded, 4 poles
1 A, self-resetting
1 m
yes, depth: 25 mm
depth: 25 mm
yes
IP67
-
BWU4750
BW3348BW3348
Passive distributor AUX
2 x AUX 24 V, 16 A/20 A
4 x spring type terminals 2,5 mm²
no
no
yes, depth: 29 mm
depth: 29 mm
no
IP20
-
BW3348
BWU1239BWU1239
Passive distributor ASi
1 x ASi
1 x M12 socket, 5 poles
no
no
no
depth: 30 mm
no
IP67
-
BWU1239
BW3803BW3803
Passive distributor ASi/AUX
1 x ASi, 1 x AUX 24 V
1 x M12 socket, 5 poles
no
no
no
depth: 28 mm
no
IP67
-
BW3803
BWU4728BWU4728
Passive distributor ASi
1 x ASi
1 x M12 socket, 5 poles
no
no
no
depth: 28 mm
no
IP67
-
BWU4728
BW1976BW1976
Passive distributor ASi/AUX
1 x ASi, 1 x AUX 24 V
1 x M12 socket, 5 poles
no
no
no
depth: 40 mm
no
IP67
-
BW1976
BW1974BW1974
Passive distributor ASi/AUX
1 x ASi, 1 x AUX 24 V
1 x M12 cable socket, angled, 5 poles
no
2 m
yes, depth: 19 mm
depth: 19 mm
no
IP67
to connect ASi devices via M12
BW1974
BW1977BW1977
Passive distributor ASi
1 x ASi
1 x M12 cable socket, angled, 5 poles
no
2 m
yes, depth: 19 mm
depth: 19 mm
no
IP67
-
BW1977
BW1975BW1975
Passive distributor ASi
2 x ASi
profile cable branch
no
no
yes, depth: 19 mm
depth: 19 mm
no
IP67
-
BW1975
BWU2820BWU2820
Passive distributor ASi/AUX
2 x ASi, 2 x AUX 24 V
5 x M12 sockets, 5 poles
no
no
no
depth: 42 mm
yes
IP67
-
BWU2820
BWU4729BWU4729
Passive distributor ASi/AUX
2 x ASi, 2 x AUX 24 V
profile cable branch
no
no
no
depth: 42 mm
no
IP67
-
BWU4729

© 2024  上海欧沁机电工程技术有限公司 All Rights Reserved

沪ICP备10034786号-13
